Description

Application
– Measures the volume of clean, cold water passing through a pipeline.
– Domestic billing purposes. Features
– Plastic shell of solid and robust design for long service life.
– Corrosion resistance, UV Stabilised, fibreglass reinforced polymer plastic.
– Optimum accuracy and performance in any position (horizontal or vertical).
– Grooved rotary piston.
– Clear, easily read, liquid sealed 8 digit counter.
– Measuring accuracy approved to SANS 1529-1.
– Internal Non-Return Valve and Strainer.
– Each meter has a ...unique serial number.
– Pulse prepared.
– Inlet and Outlet threads compatible with ISO metric sizes. Maximum Permissible Errors
– In the lower zone from qmin inclusive up to but excluding qt is plus minus 5 percent.
– In the upper zone from qt inclusive up to and including qs is plus minus 2 percent. Working Conditions
– Working temperature: 2 Degree Celsius to 40 Degree Celsius.
– Nominal pressure: 1600 kPa (16 Bar).
– Maximum test pressure: 4800 kPa (48 Bar).
Compliance Standard
– Conforms to SANS 1529-1:2006 (Class C).
– Conforms to ISO4064: Class C. Installation Requirements
– May be installed on a horizontal or vertical pipeline.
– Pipeline must be flushed before installation.
– Meters should be constantly full of water during operation. Important Notice
– Meter to be used with plastic Tailpieces or Connectors.
– No Hemp to be used during installation.
– No soldering or heat to be applied during installation. What’s in the box

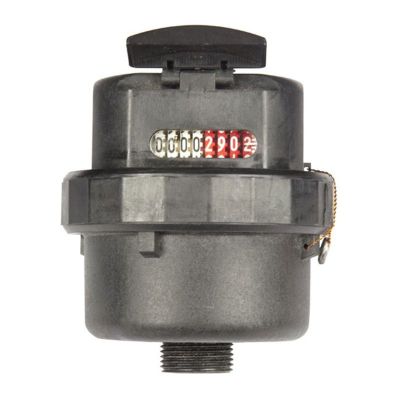

1x Water Meter
