Description

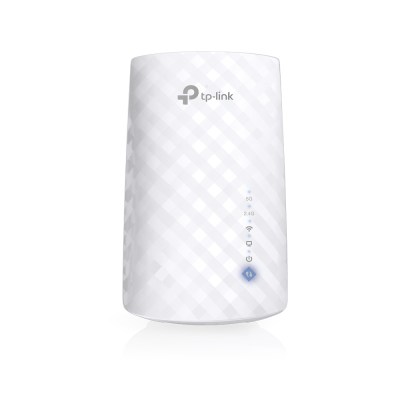

Overview RE190 AC750 Wi-Fi Range Extender Boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly Compatible with 802.11 b/g/n and 802.11ac Wi-Fi devices Dual band speeds up to 750Mbps Miniature size and wall-mounted design make it easy to deploy and move flexibly Specifications HARDWARE FEATURES Button WPS Button, RESET Button Input Power 100-240V~50/60Hz Max. Power Consumption 7.0W Dimensions ( W x D x H ) 4.3×2.59×1.53 in. (110.0×65.8×38.8mm) Antenna 3 Omni-directional Antennas WIRELESS FEATURES Wireless Standards IEEE 802.11a/n/ac 5...GHz, IEEE 802.11b/g/n 2.4GHz Frequency 2.4GHz and 5GHz Signal Rate 300Mbps at 2.4GHz, 433Mbps at 5GHz Reception Sensitivity 5GHz: 11a 6Mbps: -94dBm, 11a 54Mbps: -78dBm 11ac HT20 MCS0: -94dBm, MCS8: -73dBm 11ac HT40 MCS0: -91dBm, MCS9: -65dBm 11ac HT80 MCS0: -88dBm, MCS9: -62dBm 2.4GHz: 11g 54Mbps: -78dBm, 11n HT20: -75dBm 11n HT40: -73dBm Wireless Functions WMM, Short GI, High Speed, WPS Wireless Security WEP, WPA/WPA2-PSK encryptions Transmission Power CE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.35GHz); <30dBm(5.47GHz~5.725GHz) OTHERS Certification CE, RoHS Package Content Range Extender RE190 Quick Installation Guide System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Environment Operating Temperature: 0 C ~ +40 C Storage Temperature: -40 C ~ +70 C Operating Humidity: 10% ~ 90%RH Storage Humidity: 5% ~ 90%RH What’s in the box
1 x Range Extender RE190
1 x Quick Installation Guide
