Description

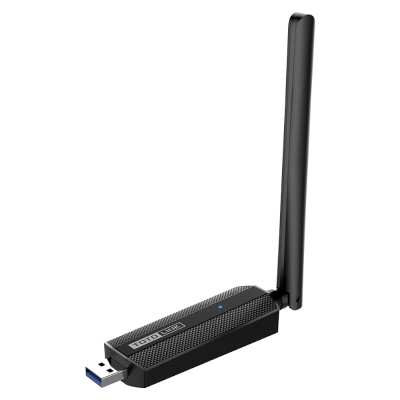

The Totolink A2100UA is a 1267Mbps wireless dual-band USB adapter with a USB3.0 interface that allows you to easily connect to your router via USB. It supports sharing of the simultaneous 2.4GHz and 5GHz wireless signal with other wireless terminals from the Wi-Fi source, which makes it an ideal LAN card for your computer. Meanwhile, an external Omni-directional antenna greatly improves wireless reception sensitivity and Wi-Fi performance. The Totolink A2100UA supports simultaneous 400Mbps on 2.4GHz and 867Mbps on 5...GHz dual-band Wi-Fi, delivering wireless speed up to total 1267Mbps, which easily satisfies the demand for high-speed internet, such as online gaming, streaming videos online or streaming music. The A2100UA has a built-in FEM module (Power amplifier + Low noise amplifier), which has a stronger Wi-Fi signal receiving ability. This creates a stronger signal and wider signal receiving range. Thanks to an external Omni-directional antenna, it greatly improves the wireless reception sensitivity and enables you to receive wireless signals from 360° direction, which improves the wireless network coverage for the users. The complied USB3.0 interface provides faster and more efficient data transfer rates while helping to transmit the wireless signal to your computer up to 2x faster than the traditional USB2.0 AC USB adapter. A secured wireless connection can be established with only one push on the WPS button, no need to input the tedious passwords anymore. Compatible with Windows 10/8.1/8/7/XP(32/64-bit) to meet the requirements of various desktop and laptop users for wireless internet connections. Features:
– Complies with IEEE 802.11a/b/g/n/ac standards.
– Up to a total 1267Mbps wireless speed on simultaneous 2.4GHz and 5GHz.
– Supports 64/128-bit WEP, WPA,WPA2,WPA-PSK, WPA2-PSK encryption.
– USB3.0 enables super-fast data transmission, even 10x faster than the universal USB2.0.
– Smoothly running on Windows 10/8.1/8/7/ XP(32/64-bit).
– External Omni-directional antenna improves the wireless reception sensitivity.
– A secured wireless connection can be established with only one push on the WPS button. Specifciations:
– Interface: USB 3.0 x1
– LED Indicator: Wireless(blue colour) x1
– Antenna: External dual-band antennas
– Standards: IEEE 802.11ac, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
– RF Frequency: 2.4 ~ 2.4835GHz, 5.18 ~ 5.825GHz
– Data Rate 2.4GHz: Up to 400Mbps
– Data Rate 5GHz: Up to 867Mbps
– EVM (Error Vector Magnitude): 11g/a: <-25dB, 11n:<-28dB, 11ac<-32dB
– Wireless Security: 64/128-bit WEP, WPA, WPA2, WPA-PSK, WPA2-PSK (TKIP/AES)
– RF Power Rate 2.4G: 11b: 11M 20±1.5dBm, 11g: 54M 17±1.5dBm, 11n: MCS7 HT20 16±1.5dBm, MCS7 HT40 16±1.5dBm
– RF Power Rate 5G: 11ac: MCS9 VHT80 12±2dBm, 11a: 54M 14±2dBm, 11n: MCS7 HT20 13±2dBm, MCS7 HT40 13±2dBm
– Compatible Operating Systems: Windows 10 (32/64bits), Windows 8/8.1 (32/64bits), Windows 7 (32/64bits), Windows XP(32/64bits)
– Dimensions (USB case): 10 x 3 x 1.8 cm
– Dimensions (antenna): 13 x 1.5 x 1.6 cm- What’s in the box
1 x Totolink A2100UA 5GHz Dual Band Wireless USB Adapter
1 x Quick Installation Guide
