Description

Tork Craft Is A Favourite Brand Known Throughout Southern Africa. Complimenting The Whole Tool Industry With An Extensive Range Of Accessories To Simply Make Your Work Easier And Make The World Go Round Hinge bore 35mm A hinge bore is required if you need to use cup shaped euro hinges for a wooden cupboard door. How to use the Hinge bore bit:
The radius of the hinge bore is 17.5mm and it is also the centre point distance. It ...would be safe to have a 4-5mm shoulder from the side of the cupboard door. So the distance from the edge to start boring is 17.5+4.5=22mm. It is critical to bore the correct depth.
Most cupboard doors vary in thickness from 16-22mm. The standard depth to bore is 13mm for most euro hinges. Sharpening:
Hardwoods require a slow speed when boring. The hinge bore can easily be sharpened using a diamond file. Tip:
Use a drill press, it is easier to control the correct depth adjustment. It is also possible to make a jig for future hinge boring. What’s in the box

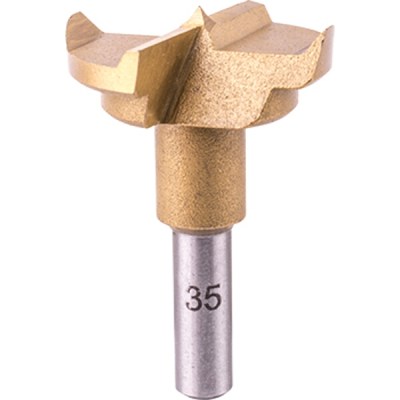

1 x Hinge Boring Bit 35mm Titanium Coated
