Description

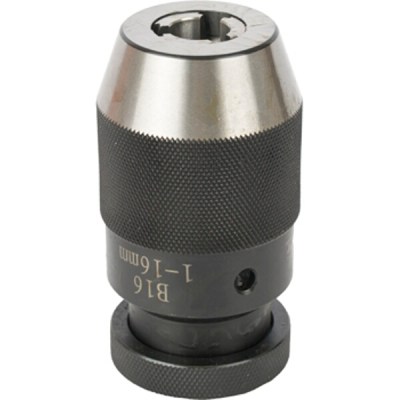

Tork Craft Is A Favourite Brand Known Throughout Southern Africa. Complimenting The Whole Tool Industry With An Extensive Range Of Accessories To Simply Make Your Work Easier And Make The World Go Round 16mm Keyless Drill Chuck
Specifications:
– 16mm
– Capacity precision keyless chuck with lock. B16 taper arbor type.
– This chuck should fit most drill presses.
– A correct taper adapter may be required to fit the chuck to your machine application.
– B16 taper
– ...Opening capacity: 16mm
– All metal construction
– Keyless with lock Installation Info
Clean both tapers of all grease and grit. With the chuck jaws completely retracted into the chuck and using a thin piece of wood to protect the chuck nose, tap the chuck into place on the spindle/taper adaptor. To remove chuck from arbor
Insert wedges between the back of the chuck and the shoulder of the arbor as shown in the picture on the right.
By tapping these wedges with a hammer or applying force in a bench vice, the wedges will force the chuck off the arbor shaft. What’s in the box
1 X CHUCK PRECISION 16MM KEYLESS WITH LOCK B16 TAPER
