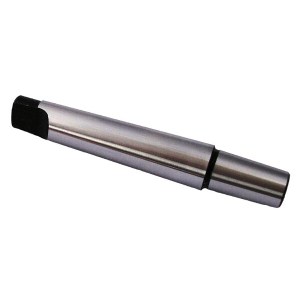

Tork Craft Chuck Arbor Adaptor Mt3 – B16
R139 RRP:R169
Save: R30
- Price excludes shipping
- Delivery Estimate: 3-5 working days
- Returns Policy
- Limited Warranty
- Description
- Additional information
Description
Tork Craft Is A Favourite Brand Known Throughout Southern Africa. Complimenting The Whole Tool Industry With An Extensive Range Of Accessories To Simply Make Your Work Easier And Make The World Go Round
MT3 – B16 arbor
Specifications:
– Drill chuck morse taper holder for the adaption of a drill chuck for your drill or mill.
– Simply fit the drill chuck onto the B16 side and away you go.
– Outside taper: MT-3,
– Pintle Size: B16.
– Hardened ...tang and precision ground
– Used to adapt drill chucks to your drill press, milling machine or lathe
Installation Info
– Clean both tapers of all grease and grit. With the chuck jaws completely retracted into the chuck and using a thin piece of wood to protect the chuck nose, tap the chuck into place on the spindle/taper adaptor.
To remove chuck from arbor
Insert wedges between the back of the chuck and the shoulder of the arbor as shown in the picture on the right.
By tapping these wedges with a hammer or applying force in a bench vice, the wedges will force the chuck off the arbor shaft.
What’s in the box
1 X CHUCK ARBOR ADAPTOR MT3 – B16
Additional information
Weight | 1 kg |
---|
Model | CMMT3 |
---|
