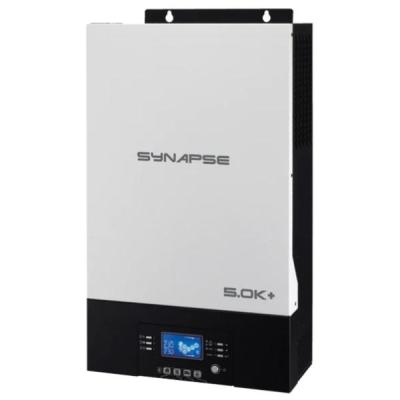

Synapse – Offgrid Inverter 5Kw 48V DC 80A MPPT
R14,489 RRP:R17,389
Save: R2,900
- Price excludes shipping
- Delivery Estimate: 3-5 working days
- Returns Policy
- Limited Warranty
- Description
- Additional information
Description
Synapse 5.0K+ Off-Grid 5KW Inverter W/Bluetooth (Voltronic Axpert King 5K). Zero transfer time to protect mission-critical loads such as servers and ATM. Detachable LCD control module with multiple communications. Built-in Bluetooth for mobile monitoring.
Features:
– Zero transfer time to protect mission-critical loads such as servers and ATM.
– Detachable LCD control module with multiple communications
– Built-in Bluetooth for mobile monitoring (Android App is available)
– Supports USB On-the-Go function
– Reserved communication port for BMS (RS485, CAN-BUS ...or RS232)
– Configurable AC/PV output usage timer and prioritization
– Optional parallel operation up to 9 units
Technical Data:
– Rated Power: 5000VA/5000W
– Parallel Capability: Up to 9 units
– Voltage: 230V AC
– Voltage Range: 110-280VAC
– Frequency Range: 50Hz/ 60Hz (Auto sensing)
– AC Voltage Regulation (Battery Mode): 230V AC +_5%
– Surge Power: 10000VA for 5 sec
– Efficiency (Peak): 93% at Line Mode, 90% at Battery Mode
– Transfer Time: 0 ms
– Waveform: Pure sine wave
– Battery Voltage: 48V DC
– Floating Charge Voltage: 54V DC
– Overcharge Protection: 66V DC
– Maximum PV Array Open Circuit Voltage: 145V DC
– Maximum PV Array Power: 4000W
– MPP Range @ Operating Voltage: 60-115V DC
– Maximum Solar Charge Current: 80A
– Maximum AC Charge Current: 60A
– Maximum Charge Current: 140A
– Dimension (D x W x H): 140 x 303 x 525mm
– Net Weight: 13.5kgs
– Communication Interface: USB / RS232 / RS485 /Bluetooth / Dry-contact
What’s in the box
1 x Synapse – Offgrid Inverter 5Kw 48V DC 80A MPPT
Additional information
Weight | 15 kg |
---|
Model | SYNAPSE5.0K4 |
---|
