Description

Comes equipped with a unique operational system, built-in MPPT allowing for Solar capabilities. There is an optional AC input that will allow for your battery bank to be charged by a grid/generator connection. These units are not capable of feeding back into the grid. Perfect for a start-up system to reduce the effects of load shedding. Pure sine wave solar inverter
Output power factor 1
Configurable AC / Solar input priority via LCD setting
Compatible with AC mains ...or generator power
3.0+ maximum Solar Charge Current = 60A
MPP Range @ operating voltage = 30-115V DC Model
Product Code = SYNAPSE 3.0+
Rated Power = 3000VA / 3000W Input
Voltage = 230V AC
Selectable Voltage Range = 170-280V AC (For Personal Computers); 90-280V AC (For home appliances)
Frequency Range = 50Hz / 60Hz (Auto sensing) Output
AC Voltage Regulation (Battery Mode) = 230V AC 5%
Surge Power = 6000VA
Efficiency (Peak) = 90%-93%
Transfer Time = 10ms (For personal computers); 20ms (For home appliances)
Waveform = Pure sine wave Battery
Battery Voltage = 24V DC
Floating Charge Voltage = 27V DC
Overcharge Protection = 33V DC Solar Charger & AC Charger
Maximum PV Array Open Circuit Voltage = 145V DC
Maximum PV Array Power = 1500W
MPP Range @ Operating Voltage = 30-115V DC
Maxmum Solar Charge Current = 60A
Maximum AC Charge Current = 60A
Maximum Charge Current = 120A Physical
Dimension (D x W x H) = 100 x 300 x 440mm
Net Weight =9,5kg
Communication Interface = USB / RS232 Environment
Humidity = 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature = -10 C to 50 C
Storage Temperature = -15 C to 60 C Please Note
Do not swap battery polarity around, if so the unit will suffer internal damage What’s in the box

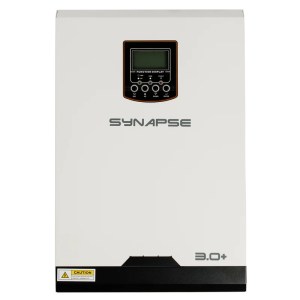

1 x SYNAPSE 3000VA/3000W (V+) 24V Off-GRID Inverter
1 x user operations manual
1 x communications cable
