Description

Specifications:

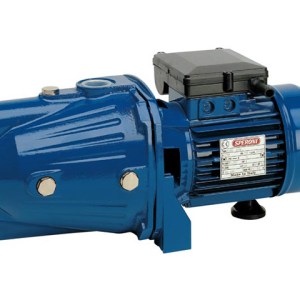

– Self Priming Jet Pump
– Brand: Speroni
– Type: Self Priming
– Size: 25 x 25mm
– Power: 1.0KW
– Voltage: 230V / 400V 3 phase Centrifugal, monoblock and single impeller electrical pumps with pump body, with connection to the motor by means of a support unit. With flanged inlet and delivery openings (PN 10) and threaded counter flanges. These machines are ideal for pumping clean water and other chemically and mechanically non aggressive liquids. They are adapted for civil, agricultural, industrial ...or general plat uses. Water supply, spray or flowing irrigation, autoclave feed, high pressure systems heating, conditioning and any other general service requiring transfer of clean liquids. Flow rate:
Height (meters) and m³/h (cubic meter of liquid per hour)
52.5m – 48 m³/h
52m – 54 m³/h
51.5m – 60 m³/h
51m – 66 m³/h
50.5m – 72 m³/h
50m – 78 m³/h
49m – 84 m³/h
47m – 96 m³/h
45m – 108 m³/h
43m – 120 m³/h
40m – 132 m³/h
36m – 144 m³/h Operating conditions:
– Liquid temperature up to 90 °C
– Ambient temperature up to 40 °C
– Total suction lift up to 7m
– Continuous duty Motor:
– Two pole induction motor
– Insulation class F
– Protection IP55 Materials:
– Cast iron pump body
– Cast iron motor support
– Cast iron impellers
– Stainless steel AISI 304 shaft with rotor
– Ceramic/Graphite/NBR mechanical seal
