Description

Features:
– Pump
– Brand: Speroni
– Type: Pump
– Size: 40X32mm
– Power: 2.20Kw
– Voltage: 230V

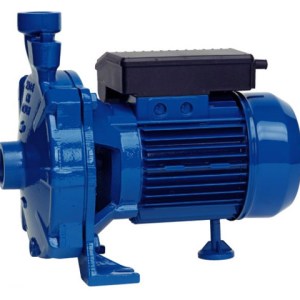

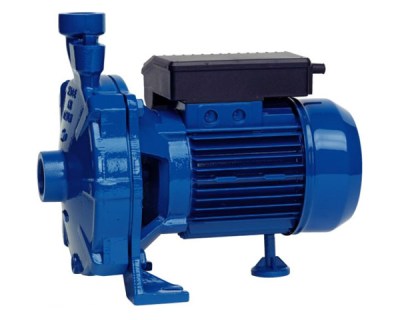

– Twin impeller centrifugal water pumps for suction up to 7 Meter. Suitable for civil and industrial purposes and to drain clean and non-aggressive liquid. Particularly suitable for high pressure systems. Flow rates:
– Height (meters) and m³/h (cubic meter of liquid per hour)
– 49 m – 0 m³/h
– 48 m – 1.5 m³/h
– 47 m – 3 m³/h
– 46.5 m – 4.5 m³/h
– 46.3 ...m – 5.4 m³/h
– 46 m – 6 m³/h
– 43 m – 7.5 m³/h
– 38.5 m – 9 m³/h
– 32 m – 10.5 m³/h Operating Conditions:
– Liquid temperature up to 35°C
– Ambient temperature up to 40°C
– Total suction lift up to 8m
– Continuous duty Motor:
– Two-pole induction motor (n=2850 min-1)
– Insulation class F
– Protection IP44 Materials:
– Cast iron pump body
– Cast iron motor support
– Noryl impeller
– Brass impeller
– Noryl diffuser
– Stainless steel shaft with rotor
– Ceramic/graphite/NBR mechanical seal
