Description

Specifications:
– Pump
-Brand: Speroni
– Power: 2.2KW
– Voltage: 400V

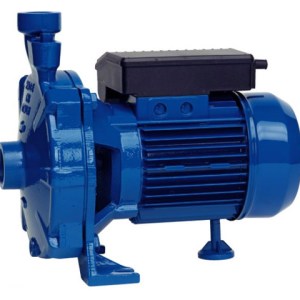

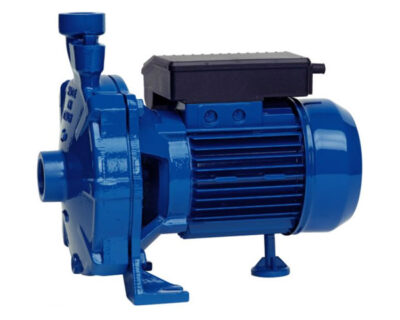

– Size: 32 x 25mm This twin impeller centrifugal water pump is used to lift clean water and non aggressive liquids. The main features are the two opposite impellers which allow higher lifts than in the single impeller model. They are used for civil and industrial settings, for water distribution by tank pressure groups and for irrigation in gardening and agriculture. Flow rates:
Height (meters) and m³/h (...cubic meter of liquid per hour)
54m – 0.6 m³/h
53m – 1.2 m³/h
51m – 3.6 m³/h
47m – 5.4 m³/h
45m – 6 m³/h
38m – 7.5 m³/h
29m – 9 m³/h Operating conditions:
Liquid temperature up to 90 °C
Ambient temperature up to 40 °C
Total suction lift up to 7m
Continuous duty Motor:
Two pole induction motor
Insulation class F
Protection IP44 Materials:
Cast iron pump body
Cast iron motor support
Brass impellers
Stainless steel AISI 304 shaft with rotor
Ceramic/Graphite/NBR mechanical seal
