Description

Features:

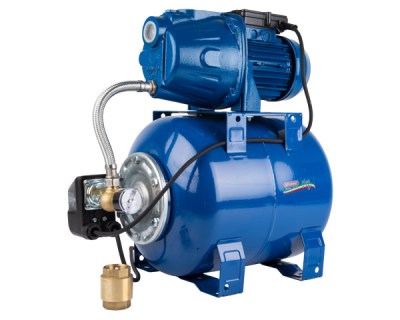

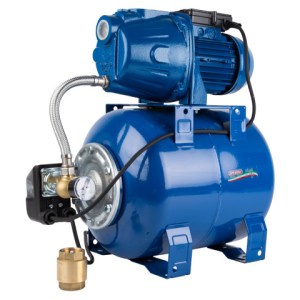

– Pressure Pump Unit
– Brand: Speroni
– Type: Pressure Pump
– Size: 22L
– Automatic high pressure groups coupled with self priming jet pumps. They are very silent and reliable and particularly suitable to increase pressure from a water system, to supply water from wells and in domestic high pressure groups. Flow rates:
– Height (meters) and m³/h (cubic meter of liquid per hour)
– 38 m – 0.6 m³/h
– 36 m – 0.9 m³/h
– 34 m – 1.2 m³/h
– 32 ...m – 1.5 m³/h
– 29 m – 1.8 m³/h
– 27 m – 2.1 m³/h
– 25 m – 2.4 m³/h
– 22 m – 2.7 m³/h
– 19 m – 3 m³/h Operating Conditions:
– Liquid temperature up to 35°C
– Ambient temperature up to 40°C
– Total suction lift up to 8m
– Continuous duty Motor:
– Two-pole induction motor (n=2850 min-1)
– Insulation class F
– Protection IP44 Materials:
– Butyl membrane tank
– Flexible hose with connection
– Adjusted switch on/off pressure – 1.4 – 2.8 bar with cable
– Pressure gauge
– Brass connection
