Description

Specifications:

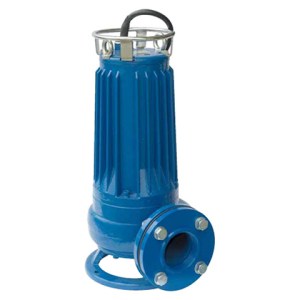

– Drainage Pump
– Brand: Speroni
– Type: SQ6555
– Size: 100mm
– Power: 5.5Kw Thanks to their important features, SQ pumps are the ideal solution for the carriage of wate3rs coming from cleaners, sewing systems, zootechnic farms, slaughter -houses, foundries and for irrigation in agricultural fields. Applicable in the fishing industry, paper mills and in civil an industrial plants. The pumps adopt open single blade impellers which allow free passages which allow free passage of suspended parts ...and high performance. Flow rates:
Height (meters) and m³/h (cubic meter of liquid per hour)
6 m – 25 m³/h
15 m – 22.5 m³/h
18 m – 215 m³/h
25 m – 19 m³/h
36 m – 15 m³/h
42 m – 13 m³/h
50 m – 11 m³/h
54 m – 9 m³/h
65 m – 6 m³/h
72 m – 3 m³/h Operating conditions:
– Liquid temperature 0 – 35 °C (according to EN60335-2-41) up to 50 °C (for other uses)
– Maximum immersion depth 20 m (with a cable for the appropriate length)
– Liquid PH from 4 to 10
– Continuous duty with completely submersed pup
– Liquid density 1.2 kg/dm³ Motor:
– Insulation class F
– Protection IP 68 Materials:
– Cast iron motor body
– Cast iron pump body
– Cast iron impeller
– Stainless steel AISI 304 shaft with rotor
– Double mechanical seal in oil chamber – Ceramic/Graphite/NBR – Silicon/silicon/NBRR
