Description

Ready 4 the Future: Support Lightning Gen 4 Solution for the future.
Premium Thermal Solution: Aluminum Cover with Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience.
Lightning USB 20G: Powered by ASmedia 3241 USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C.
2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, ...stable and fast network connection.
MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
Pre-installed I/O Shielding: Better EMI protection and more convenience for installation.
Audio Boost: Reward your ears with studio grade sound quality. Specifications:

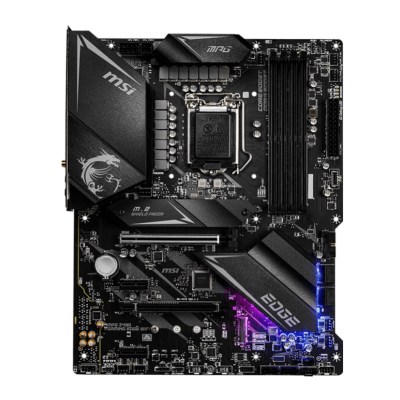

Model Name: MPG Z490 GAMING EDGE WIFI
CPU Support: Supports 10th Gen Intel Core and Pentium Gold / Celeron processors
CPU Socket: LGA 1200
Chipset Intel Z490 Chipset
Graphics Interface: 2x PCI-E 3.0 x16 slots Support 2-way AMD CrossFire Technology
Display Interface: DisplayPort, HDMI – Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR4-4800 (OC)
Expansion Slots: 2x PCIe 3.0 x1 slots
Storage: 2x M.2 slots, supports Intel Optane, Technology 6x SATA 6Gb/s
USB ports: 1x USB 3.2 Gen 2×2 20Gbps (Type-C) + 1x USB 3.2 Gen 2 10Gbps (Type-A ) + 7 x USB 3.2 Gen 1 5Gbps (6 Type-A + 1Type-C) + 6 x USB 2.0
LAN: Realtek 8125B 2.5G LAN
WiFi / BT: Intel Wi-Fi 6 AX201, Bluetooth 5.1
Audio 8-Channel(7.1) HD Audio with Audio Boost 4
Form Factor ATX What’s in the box
User Manual.
Quick Installation Guide.
MSI Case Badge.
Product Registration Card.
Wi-Fi Antenna.
Driver DVD.
2 x SATA Cables.
