Description

PRO B760M-E DDR4 Lightning Gen4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
PCI-E Steel Armor
Protecting VGA cards against bending and EMI.
EZ Debug LED
Easiest way to troubleshoot.
Frozr AI Cooling
Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
Memory Boost
Advanced technology to deliver pure data signals for the best ...performance, stability and compatibility.
Core Boost
With premium layout and fully digital power design to support more cores and provide better performance.
Audio Boost
Reward your ears with studio grade sound quality for the most immersive audio experience. SPECIFICATIONS

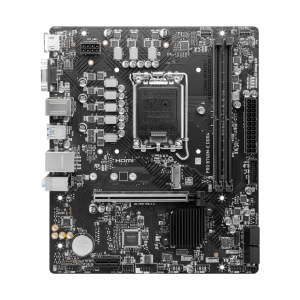

Model Name PRO B760M-E DDR4
CPU Support Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium®
Gold and Celeron® Processors
CPU Socket LGA 1700
Chipset Intel® B760 Chipset
Expansion Slots 1x PCIe 4.0 x16 slot 1x PCIe 3.0 x1 slot
Display Interface Support 4K@30Hz as specified in HDMI™ 1.4, VGA – Requires Processor Graphics
Memory Support 2 DIMMs, Dual Channel DDR4-4800+MHz(OC)
Storage 1x M.2 Gen4 x4 64Gbps slot,4x SATA 6Gbps ports
USB ports 4x USB 3.2 Gen 1 5Gbps (4 Type-A), 8x USB 2.0
LAN Realtek® RTL8111H Gigabit LAN
Audio 8-Channel (7.1) HD Audio with Audio Boost What’s in the box
1 x MSI PRO B760M-E DDR4 Motherboard
2 x SATACables
