Description

With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high-quality components, and developed products for reliability even under extreme conditions. With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensure even high-end AMD CPU to run in full speed with MSI motherboards. High-performance MSI ...motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast. Utilizing AMD Ryzen 5000 series processors, MSI X570S motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. FEATURES:
Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
Supports DDR4 Memory, Dual Channel 5300(OC) MHz+
Extreme Power Design: Direct 16+2+1 phases with 90A Smart Power Stage and dual CPU power connectors to unleash the maximum performance.
Quadruple M.2 Connectors: Onboard 4x M.2 connectors for the maximum storage performance with Lightning Gen 4 solution.
Double-sided M.2 Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
Premium Thermal Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, Double-sided M.2 Shield Frozr and MOSFET Baseplate.
2.5G LAN with latest Wi-Fi 6E solution: Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz.
Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 double-side Shield Frozr, Lightning USB 20G.
Server Grade PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
Audio Boost 5 HD: Ultimate audio solution with premium audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience. Specifications Model Name: MEG X570S ACE MAX
CPU Support: Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-
Series: 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
CPU Socket: Socket AM4
Chipset: AMD X570 Chipset
Graphics
Interface: 3x PCIe 4.0 x16 slots
Support: NVIDIA SLI / AMD CrossFire Technology
Expansion Slots: 1x PCIe 4.0 x1 slot
Memory Support: 4 DIMMs, Dual Channel DDR4-5300MHz+(OC)
Storage: 4x M.2 Gen4 x4 64Gb/s slots, 8x SATA 6Gb/s ports
USB Ports:
1x USB 3.2 Gen 2×2 20Gbps (1 Type-C),
4x USB 3.2 Gen 2 10Gbps (3 Type-A + 1 Type-C),
8x USB 3.2 Gen 1 5Gbps (8 Type-A),
8x USB 2.0
LAN: Realtek® RTL8125B 2.5G LAN
Wireless / BT: Intel® Wi-Fi 6E AX210, Bluetooth 5.2
Audio: 8-Channel (7.1) HD Audio with Audio Boost 5 HD What’s in the box

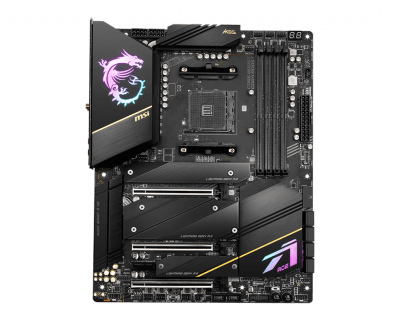

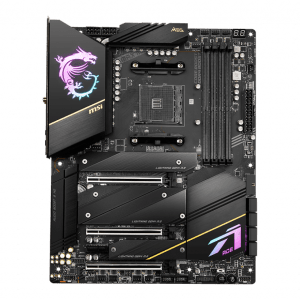

1 x MSI MEG X570S ACE MAX AM4 ATX Motherboard – Black
1 x WiFi Antenna
4 x SATA cables
1 x M.2 XPANDER-Z GEN4 S
4 x M.2 Standoff Screws/Sets
1 x USB Drive
1 x Cleaning Brush
2 x Screwdrivers
2 x Thermistor Cable
1 x 1 to 2 RGB LED Extension Y Cable
1 x CORSAIR RGB LED Extension Cable
1 x Rainbow RGB LED Extension Cable
1 x MAG Stickers Pack
1 x Quick Install Guide
1 x User Manual
