Description

With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high-quality components, and developed products for reliability even under extreme conditions. With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensure even high-end AMD CPU to run in full speed with MSI motherboards. High-performance MSI ...motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast. Utilizing AMD Ryzen 5000 series processors, MSI X570S motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. FEATURES: Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
Supports DDR4 Memory, up to 5100(OC) MHz
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr is built for high-performance systems and non-stop works
2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
Multi-GPU: With Steel Armour PCIe slots. Supports 2-Way AMD Crossfire™ SPECIFICATIONS:
Socket: AMD Socket AM4
CPU: (Max Support): Support for 3rd Gen AMD® Ryzen™ processors and future AMD® Ryzen™ processors with BIOS update
Chipset: AMD® X570 Chipset
DDR4 Memory: 1866/ 2133/ 2400/ 2667/ 2800/2933 /3000 /3066 /3200 /3466 /3600 /3733 /3866 /4000 /4133 /4266 /4400 /4533 / 4600/ 4733/ 4866/ 5000/ 5100 Mhz by JEDEC and A-XMP OC MODE
Memory Channel: Dual
DIMM Slots: 4
Max Memory (GB): 128
PCI-E x16: 2
PCI-E x1: 2
SATAIII: 6
M.2 Slot: 2
RAID: 0/1/10
LAN: 1 x Realtek® 8125B 2.5G LAN
WiFi and Bluetooth: Intel® Wi-Fi 6E AX210
USB 3.2 ports (Front): 1(Gen 2, Type C), 4(Gen 1, Type A)
USB 3.2 ports (Rear): 1(Gen 2, Type C), 2(Gen 2, Type A), 2(Gen 1, Type A)
USB 2.0 ports (Front): 4
USB 2.0 ports (Rear): 2 (Type-A)
Audio ports (Rear): Realtek® ALC4080 Codec
HDMI: 1
DirectX: 12
Form Factor: ATX
Crossfire: Yes

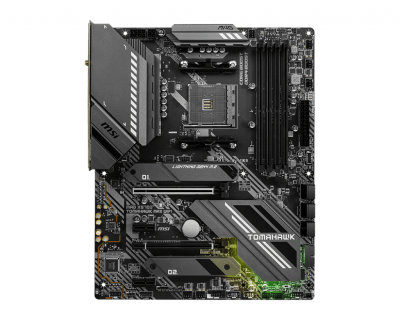

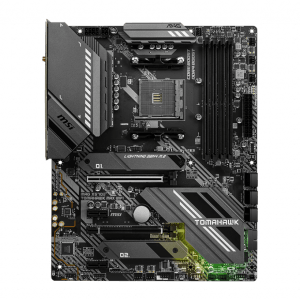

Operating System: Support for Windows® 10 64-bit What’s in the box MSI X570S TOMAHAWK MAX WIFI AM4 ATX Motherboard – Black x1
WiFi Antenna x2
SATA cables x2
Standoff Screws/Sets x3
USB Drive x1
MAG Stickers Pack x1
Quick Install Guide x1
User Manual x1
