Description

The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry-level gamers. With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run ...at full speed with MSI motherboards. High-performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast. Utilizing 11th Gen Intel processors, MSI B560 motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speeds. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. Features:
– Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
– Supports DDR4 Memory, up to 5066(OC) MHz
– Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
– Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr is built for a high-performance system and non-stop works
– 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
– Lightning USB 20G: Powered by USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
– Audio Boost: Reward your ears with studio grade sound quality
– Multi-GPU: With Steel Armor PCIe slots. Supports 2-Way AMD Crossfire™ Specifications:
– Socket: 1200
– CPU (Max Support): i9
– Chipset: Intel® B560 Chipset
– DDR4 Memory: 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
– Memory Channel: Dual
– DIMM Slots: 4
– Max Memory (GB): 128
– PCI-E x16: 2
– PCI-E x1: 1
– SATAIII: 6
– M.2 Slot: 3
– LAN: 1x Realtek® 8125B 2.5G LAN
– Wi-Fi & Bluetooth: Intel® Wi-Fi 6E AX210
– USB 3.2 ports (Front): 1(Gen 2, Type C), 2(Gen 1, Type A)
– USB 3.2 ports (Rear): 1(Gen 2×2, Type C), 4(Gen 1, Type A)
– USB 2.0 ports (Front): 4
– USB 2.0 ports (Rear): 4
– Audio ports (Rear): Realtek® ALC897 Codec
– DisplayPort: 1
– HDMI: 1
– Form Factor: ATX
– CrossFire: Yes
– Operating System: Support for Windows® 10 64-bit What’s in the box

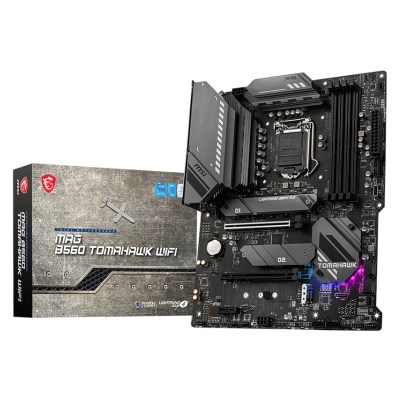

1 x MSI MAG B560 Tomahawk WIFI Intel 1200 ATX Motherboard – Black
2 x Wi-Fi Antenna
2 x SATA cables
2 x M.2 Screws/Standoff Sets
1 x Driver DVD
1 x User Manual
1 x Quick Install Guide
