Description

Core boost
With premium layout and fully digital power design to support more cores and provide better performance.
DDR4 boost
Advanced technology to deliver pure data signals for the best gaming performance and stability.
Lightning gen4 solution
The latest gen4 PCI-E and m.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
M.2 Shield Frozr
Strengthened built-in m.2 thermal solution. Keeps m.2 SSDs safe while preventing throttling, making them run faster.<...br /> PCI-E steel armor
Protecting vga cards against bending and emi.
Mystic light extension
Control additional RGB or rainbow strip added to your system with dragon center.
2oz thickened copper PCB
An enhanced PCB design improves heat dissipation and performance reliability. Specifications:

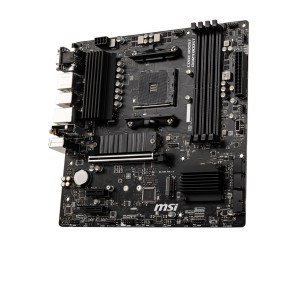

Model Name: B550 Pro-vdh wifi
CPU Support: support for 3rd Gen AMD® Ryzen™ processors and future AMD® Ryzen™ processors with bios update
CPU Socket: AMD Socket AM4
Chipset: AMD B550 chipset
Graphics interface: 1x PCIe 4.0 / 3.0 x16 slot
Display interface: displayPort, HDMI, vga – Requires Processor Graphics
Memory support: 4 DIMMs, dual channel DDR4-4400 MHz (oc)
Expansion slots: 2x PCI-E 3.0 x1 slots
Storage: 1x M.2 Gen4 x4 slot, 1x M.2 Gen3 x4 slot, 4x SATA 6Gb/s ports
USB ports: 7x USB 3.2 Gen 1 5Gbps (6 Type-A + 1 Type-C) + 6x USB 2.0
LAN: realtek® RTL8111HN Gigabit lan
WiFi / BT: Intel® Wireless-AC 3168, Bluetooth 4.2
Audio: 8-Channel (7.1) HD audio with audio boost
Form Factor: Micro atx What’s in the box
User manual.
Quick installation guide.
MSI case badge.
Product registration card.
Wi-Fi antenna.
Driver disk.
2 x SATA cables.
