Description

AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Turbo M.2 FEATURES:
Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
Supports DDR4 Memory, up to 3466+(OC) MHz
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
DDR4 Boost: Advanced technology to deliver pure data signals for ...the best performance and stability.
Audio Boost: Reward your ears with studio grade sound quality.
EZ Debug LED: Easiest way to troubleshoot
Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
PCI-E Steel Slot: Protecting VGA cards against bending. SPECIFICATIONS:
Socket: AM4
CPU (Max Support): RYZEN 9
Chipset: AMD® B450 Chipset
DDR4 Memory: 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) For AMD Ryzen Gen3 (R5/R7/R9) | 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE) | For AMD Other CPU 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
Memory Channel: Dual
DIMM Slots: 2
Max Memory (GB): 32
PCI-E X16: 1
PCI-E Gen: Gen3
PCI-E X1: 2
SATAIII: 4
M.2 Slot: 1
TPM (Header): 1
LAN: 1x Realtek® 8111H Gigabit LAN controller
USB 3.2 Ports (Front): 2(Gen1, Type A)
USB 3.2 Ports (Rear): 4(Gen1, Type A)
USB 2.0 Ports (Front): 4
USB 2.0 Ports (Rear): 2
Serial Ports(Front): 1
Audio Ports (Rear): Realtek® ALC887 Codec
DVI-D: 1
VGA: 1
HDMI: 1
DirectX: 12
Form Factor: m-ATX
Operating System: Support for Windows® 10 64-bit | Support for Windows® 7 64-bit | * To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. What’s in the box

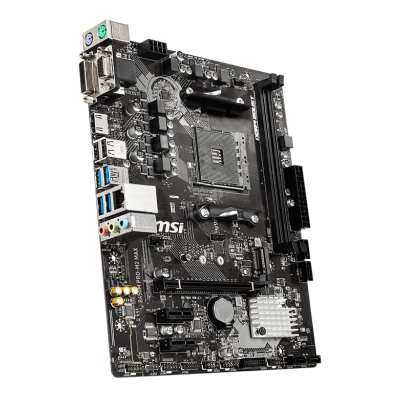

1 x MSI B450M Mortar PRO-M2 Max AMD AM4 m-ATX Gaming Motherboard
1 x User Manual
