Description

Processor:
Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors: for Socket AM4 See supported Processors: Chipset:
AMD B450 Chipset: Memory:
– 4 x DDR4 Memory: Slots:, support up to 64GB
– Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
– For AMD Ryzen Gen3 (R5/R7/R9)
– Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE)
– For AMD Other CPU
– Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by ...A-XMP OC MODE)
– Dual channel Memory: architecture
– Supports non-ECC UDIMM Memory:
– Supports ECC UDIMM Memory: (non-ECC mode) See supported Memory: Slots:
1 x PCIe 3.0 x16 slot (PCIE1)
– Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen Processors:
– Supports x8 speed with Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Processors:
– Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors:
– 1 x PCIe 2.0 x16 slot (PCIE4, supports x4 mode)1
– 2 x PCIe 2.0 x1 Slots:2
– PCIE4 slot will be unavailable when an M.2 SSD is installed in the M22 slot.PCIE2 slot will be unavailable when an expansion card is installed in the PCIE3 slot. ONBOARD GRAPHICS:
– 1 x DisplayPort, support a maximum resolution of 4096×2304 @60Hz, 2560×1600 @60Hz, 3840×2160 @60Hz, 1920×1200 @60Hz1,2
– 1 x HDMI 1.4 port, supports a maximum resolution of 4096×2160 @30Hz, 2560×1600 @60Hz1,2
– Only support when using AMD Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Processors:Maximum shared Memory: of 2048 MB MULTI-GPU:
Supports 2-Way AMD CrossFire Technology Storage:
– AMD B450 Chipset:
– 4 x SATA 6Gb/s ports1
– 1 x M.2 Slots: (M2_2, Key M)1
– Supports PCIe 2.0 x4 2242/ 2260/2280 Storage: devices AMD CPU:
– 1x M.2 slot (M21, Key M)1
– Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (AMD Athlon with Radeon Vega Graphics)and SATA 6Gb/s 2242/ 2260/2280 Storage: devices
– PCIE4 slot will be unavailable when an M.2 SSD is installed in the M2_2 slot. RAID:
AMD B450 Chipset:
– Supports RAID 0, RAID 1 and RAID 10 for SATA Storage: devices
– Supports RAID 0 and RAID 1 for M.2 NVMe RAID USB
AMD B450 Chipset:
– 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
– 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
– 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector
– 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD CPU AMD Processor:
4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel Audio:
– Realtek ALC892 Codec
– 7.1-Channel High Definition Audio:
– Supports S/PDIF output LAN:
1 x Realtek RTL8111H-CG Gigabit LAN controller Internal Connections:
– 1 x 24-pin ATX 12V power connector
– 1 x 8-pin ATX 12V power connector
– 4 x SATA 6Gb/s connectors
– 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
– 1 x USB 3.2 Gen1 connector (support additional 2 USB 3.2 Gen1 ports)
– 1 x 4-pin CPU fan connector
– 3 x 4-pin system fan connectors
– 2 x 5050 RGB LED strip 12V connectors
– 1 x TPM module connector
– 1 x Front panel Audio: connector
– 2 x System panel connectors
– 1 x Chassis Intrusion connector
– 1 x Clear CMOS jumper
– 1 x Serial Port connector
– 1 x Parallel Port connector Back Panel Ports:
– Flash BIOS Button
– PS/2 Combo Port
– DisplayPort
– LAN Port
– USB 3.2 Gen2 Type A
– HD Audio: Connectors
– USB 2.0 Ports
– HDMI Port
– USB 3.2 Gen1
– USB 3.2 Gen2 Type C
– Optical S/PDIF OUT

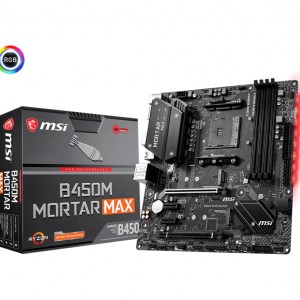

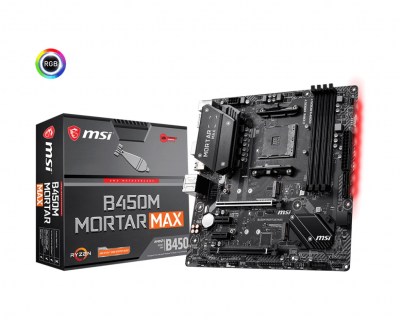

– MSI B450M MORTAR MAX Back Panel Ports: Domensions:
– 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
– m-ATX Form Factor Mounting:
8 Mounting: holes Operating System:
– Support for Windows 10 64-bit
– Support for Windows 7 64-bit
– To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU What’s in the box
B450m Mortar Max Motherboard, Sata Cables x 2
Driver disk x 1
Plate x 1
