Description

Enjoy a blazing fast system boot up and insanely quick loading of applications and games with the MSI B450M-A Pro Max motherboard. Delivering speeds up to 32Gb/s per device using Gen3 x4, Turbo M.2 is over 5 times faster than a regular SATA III connection!
Core Boost is the latest advancement of MSI’s motherboard CPU power delivery system. A reserved zone of premium power delivery components on an optimized circuit design results in a highly efficient power ...system capable of precise current output to the CPU.
Reward your ears with studio grade sound quality. MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, studio quality sound to create the most immersive sound experience.
PRO Series motherboards combine stable functionality and high quality assembly for clever business solutions. Designed to satisfy any professional workflow, PRO Series motherboards make life easier for businesses and office use.
FEATURES: -Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4
-Supports DDR4 Memory, up to 4133 (OC) MHz
-Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
-Audio Boost: Reward your ears with studio grade sound quality.
-X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
-Core Boost: With premium layout and fully digital power design to support more cores and provide better performance. SPECIFICATIONS: -Socket: AM4
-CPU Support:
-Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics
-Athlon with Radeon Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4
-Chipset: AMD B450
-DDR4 Memory: DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE), 1866/ 2133/ 2400/ 2667Mhz(by JEDEC)
-Memory Channel: Dual Channel DDR4
-DIMM Slots: 2
-Max Memory (GB): 64
-PCI-E Gen: Gen3
-PCI-E x16: 1
-PCI-E x1: 1
-SATA III: 4
-M.2 Slot: 1
-TPM (Header): 1
-USB 3.2 Ports (Front): 2(Gen1, Type A)
-USB 3.2 Ports (Rear): 4(Gen1, Type A)
-USB 2.0 Ports (Front): 4
-USB 2.0 Ports (Rear): 2
-Serial Ports(Front): 1
-LAN port (Rear): Realtek 8111H Gigabit LAN controller
-Audio ports (Rear): Realtek ALC892/ALC897 Codec
-DVI-D: 1
-HDMI: 1
-DirectX: 12
-Form Factor: m-ATX
-Operating System: Support for Windows 10 64-bit, Windows 7 64-bit WHAT’S IN THE BOX: -MSI B450M-A PRO MAX AMD AM4 mATX Gaming Motherboard – Black x1
-Driver DVD x1
-I/O Shield x1
-SATA Cable x2
-Quick Install Guide x1 What’s in the box

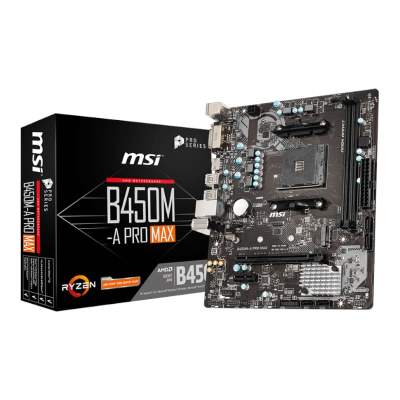

1 x MSI B450M-A PRO MAX AMD AM4 mATX Gaming Motherboard
