Description

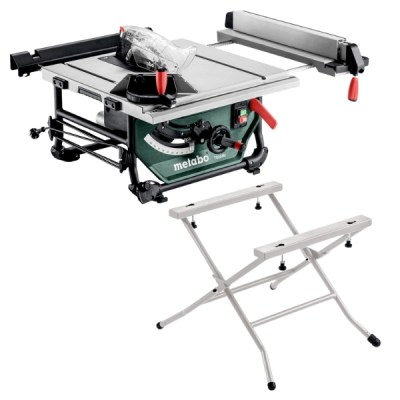

Table Saw TS 254 M (610254000):
– Compact mobile table saw with impressive cutting performance and high comfort for working
– Anti-twist tubular frame construction for highest demands on the building site and during installations
– Cables and all add-on components for transport can be stored on the casing
– Powerful motor with electronic overload protection
– Motor brake for quick stop of the saw blade in 3 seconds
– Restart protection: prevents unintentional start-up after a power supply interruption
– Soft start ...for the long service life of motor and drive
– Precisely adjustable rip fence with double clamping and quick fastening
– Precise saw blade inclination via gear guide
– Automatic resetting to 0 – 45 ° after undercuts
– Easy saw blade change with spindle lock
– Splitting wedge can be lowered without tools for hidden cuts and transport
– Precise, extendable table width extension for extra large working surfaces Characteristics:
– Dimensions: 669 x 748 x 334 mm
– Working height: 334 mm
– Cutting height: 0 – 80 mm
– Maximum cutting height 90/45°: 80 / 48 mm
– Maximum cutting width at rip fence: 520 mm
– Maximum material width at mitre fence: 195 mm
– No-load speed: 4200 rpm
– Cutting speed: 56 m/s
– Saw blade: 254 x 30 mm
– Saw blade swivel range: -1.5 – 46.5 °
– Rated input power S1 100%: 1500 W
– Weight: 24.4 kg
– Cable length: 2.3 m Noise emission:
– Sound pressure level: 92 dB(A)
– Sound power level (LwA): 105 dB(A)
– Uncertainty of measurement K: 3 dB(A) Table Saw Stand / TSU Stand for TS 254 M (629003000):
– For ideal working height and stability
– Foldable
– Weight: 5.9 kg
– Max. load with the attached machine: 125 kg (machine + work-piece) Characteristics:
– Suitable for Table Saws / TS 254 M What’s in the box
1 x Table Saw TS 254 M (610254000)
1 x Table Saw Stand / TSU Stand for TS 254 M (629003000)
