Description

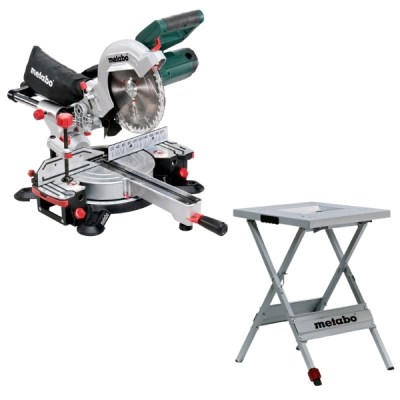

Mitre Saw KGS 216 M (619260000):
– Sliding function for wide workpieces.
– Compact lightweight, suitable also for one-handed transport
– Robust die-cast aluminium design for the highest demands
– Easy transport thanks to ergonomically-designed handles and saw headlock
– Effective dust extraction via integrated dust scoop
– Fast and precise setting of common angles using stop points
– Laser for exact display of the cutting line (mains powered, no batteries required)
– Adjustable and extendable table width extensions, removable to put ...long panels, slabs etc. underneath
– Bright LED work light for illumination of the cutting line (mains powered, no batteries required)
– Sliding high rear fence profiles for safe sawing
– Material clamp for secure fixing of the workpiece from the top or front
– Depth guide for easy creation of grooves
– Saw head can be inclined to the left, with an additional angle range for undercuts
– All scales and operating elements are visible from the working position and can be operated intuitively
– Easy saw blade change by means of spindle lock: No dismantling of the pendulum guard required Includes:
– Carbide saw blade (40 teeth)
– 2 Table length extensions
– Length Guide
– Material clamp
– Tool for saw blade change
– Cable winder
– Chip Collection Bag Characteristics:
– Dimensions: 760 x 475 x 340 mm
– Support surface: 345 x 730 mm
– Maximum cutting width 90°/45°: 305 / 205 mm
– Maximum cutting depth at 90°/45°: 65 / 36 mm
– Cutting capacity 90°/90°: 305 x 65 mm
– Cutting capacity 45°/45°: 205 x 36 mm
– Turntable setting left/right: 47 / 47 °
– Saw blade tilt left/right: 47 / 2 °
– Saw blade: 216 x 30 mm
– Rated input power S1 100%: 1200 W
– Rated input power S6 20%: 1500 W
– No-load speed: 5000 rpm
– Revolutions at rated load: 3750 rpm
– Cutting speed: 57 m/s
– Weight: 13.5 kg
– Cable length: 2 m Noise emission:
– Sound pressure level: 97 dB(A)
– Sound power level (LwA): 104 dB(A)
– Uncertainty of measurement K: 3 dB(A) Machine Stand UMS (631317000):
– For ideal working height and stability
– Can be folded up compactly
– Compensation in height with adjustable stand
– Ready mounted
– Height of workbench: 83 cm
– Weight: 12 kg
– Maximum weight load: 250 kg
– Support surface 57 x 60 cm What’s in the box
1 x Mitre Saw KGS 216 M (619260000)
1 x Machine Stand UMS (631317000)
