Description

Crosscut and mitre saw of the mobile M-class with sliding function – light, precise, user-friendly
Precision Cut Line (PCL): precise shadow cutting line without re-adjustment thanks to cleverly positioned LED
Large cutting capacity thanks to sliding function for wide work pieces
Turntable with fast, precise setting of common angles using stop points
Saw blade inclination from -2 to 47 , therefore also suited for undercuts
Robust die-cast aluminium design for the highest demands
Effective dust extraction via ...integrated dust scoop
Soft start for long service life of motor and drive
Extendable table width extensions, also removable to put underneath extremely long work pieces
Quick-action clamp for secure fixing of the work piece from the top or front
Depth guide for easy creation of grooves
All scales and operating elements are visible from the working position and can be operated intuitively
Ergonomic handle areas for carrying with one or two hands Specifications:
Dimensions: 710 x 476 x 512 mm
Support surface: 345 x 730 mm
Maximum cutting width 90 /45 : 305 / 215 mm
Maximum cutting depth at 90 /45 : 70 / 40 mm
Cutting capacity 90 /90 : 305 x 70 mm
Cutting capacity 45 /45 : 215 x 40 mm
Turntable setting left/right: 50 / 50
Saw blade tilt left/right: 47 / 2
Saw blade: 216 x 30 mm
Rated input power: 1200 W
Rated input power S1 100%: 1200 W
Rated input power S6 20%: 1500 W
No-load speed: 5000 rpm
Speed at rated load: 3750 rpm
Cutting speed: 57 m/s
Weight: 13.4 kg
Cable length: 2 m Noise emission:
Sound pressure level: 85 dB(A)
Sound power level (LwA): 98 dB(A)
Uncertainty of measurement K: 3 dB(A) What’s in the box

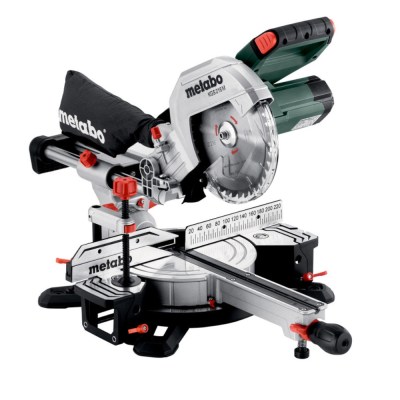

1 x Metabo – KGS 216 M Mitre Saw With Sliding Function (613216000)
