Description

Features:
– Robust circular saw can be used directly on guide rails from Metabo and other manufacturers for precise, long cuts
– Light guide plate made from die cast aluminium
– Grip area with non-slip soft-grip surface
– Clearly visible cutting indicator for precise sawing after initial cut
– 0 degrees position re-adjustable for highest cutting precision
– Extraction possibility by means of connecting an all-purpose vacuum cleaner
– Adjustment of machine without tools for using with the precision guide rail ...Characteristics:
– Rated input power: 1200 W
– Output power: 670 W
– Maximum cutting depth at 90 degrees: 55 mm
– Maximum cutting depth at 45 degrees: 39 mm
– Max. cutting depth with guide rail: 50 mm
– Saw blade Ø x bore: 160 x 20 mm
– Swivel range from / to:? 0 / + 47 degrees
– No-load speed: 5600 rpm
– Revolutions at rated load: 4400 rpm
– Max. cutting speed: 47 m/s
– Torque: 5 Nm
– Weight (without power cable): 4 kg
– Cable length: 4 m Vibration:
– Sawing chipboards3.4 m/s square
– Uncertainty of measurement K: 1.5 m/s square Noise emission:
– Sound pressure level: 93 dB(A)
– Sound power level (LwA): 104 dB(A)
– Uncertainty of measurement K: 3 dB(A) What’s in the box

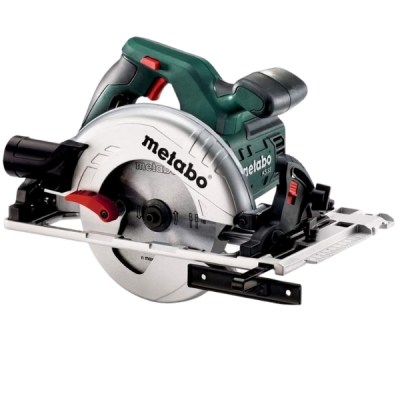

1 x Metabo – Circular Saw – (1200W)
1 x Carbide circular saw blade (18 teeth)
1 x Hexagonal wrench
1 x Plastic carry case
1 x Parallel guide
1 x Extraction connector
