Description

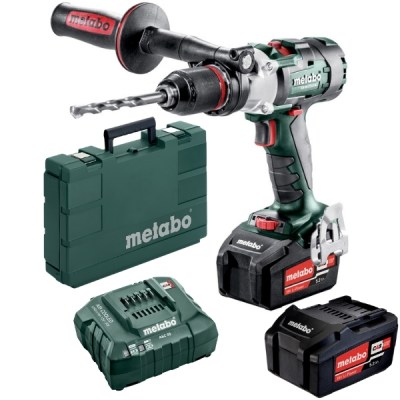

1 x Brushless Cordless Hammer Drill:
Brushless 3-speed cordless hammer drill with maximum power for demanding applications.
Third speed setting with high torque (max. 3,800/min) for extended range of application and even faster drilling progress.
Selectable “impulse” mode for removal of stubborn screws and for spot-drilling on smooth surfaces.
Unique Metabo brushless motor for quick work progress and highest efficiency when drilling and screwdriving.
Precision Stop: electronic torque control with increased precision for precise, delicate working.<...br /> High-performance impact mechanism for optimum drilling performance.
Spindle with hexagonal recess for screwdriver bits for working without chuck.
Collar (Ø 43 mm) for versatile use.
Integrated working light to illuminate the contact area.
Robust die cast Aluminum gear housing for optimum heat dissipation and long service life.
With handy belt hook and bit case which can be fixed either on the right or left side.
Battery packs with capacity display for checking the charge status.
Ultra-M technology: highest performance, gentle charging and 3 years of warranty on the battery pack. 2 x Battery Packs 18 V, 5.2 Ah, Li-Power (625592000):
Ultra M technology: Intelligent battery management for long-lasting battery packs with a 3 year guarantee
Patented “AIR COOLED” charging technology
Permanent Electronic Single Cell Protection (ESCP) when charging, for particularly long life.
Processor-controlled charge and discharge management
Capacity display with almost no self-discharge
Capacity display with almost no self-discharge
One battery pack for everything. 100% compatibility with all 18 V machines and chargers of Metabo Products. 1 x “Air Cooled” Charger ASC 55, 12-36 V, GB (627045000)
Monitored charging with microcontroller
Battery diagnosis
Charge time approximately 30 minutes at 1.5 Ah
“Air Cooled” function
For charging all Li-Power Compact, Li-Power Plus, Li-Power Extreme battery packs
For charging all Li-Ion and LiHD slide-on battery packs (12 V – 36 V) with adapted battery pack charging current
Charger switches to compensation charge: to conserve the capacity, the battery pack is charged for 1 second every 45 seconds with 2.5 ampere.
“Air Cooled” function: the patented principle is based on air-cooling the battery pack during the charging process. The battery packs are gently cooled down to the required charging temperature, and then during the charging process are constantly maintained at optimum temperature. With this principle, a higher tool life of the battery packs and up to 30% shorter total charging time can be achieved.
“Air Cooled” function: the patented principle is based on air-cooling the battery pack during the charging process. The battery packs are gently cooled down to the required charging temperature, and then during the charging process are constantly maintained at optimum temperature. With this principle, a higher tool life of the battery packs and up to 30% shorter total charging time can be achieved. 1 x Plastic Carry Case Characteristics:
Type of battery pack: Li-ion
Battery voltage: 18 V
Battery pack capacity: 2 x 5.2 Ah
Maximum torque – soft: 60 Nm / 531 in-lbs
Pulse torque: 65 Nm / 48 in-lbs
Maximum torque, hard: 120 Nm / 1062 in-lbs
Adjustable torque: 1 – 20 Nm // 9 – 177 in-lbs
Drill-Ø masonry: 16 mm / 5/8 “
Drill Ø steel: 13 mm / 1/2 “
Drill-Ø soft wood: 65 mm / 2 1/2 “
No-load speed: 0 – 500 / 0 – 2050 / 0 – 3800 rpm
Maximum impact rate: 32300 bpm
Chuck capacity: 1.5 – 13 mm // 1/16 – 1/2 “
Weight (including battery pack): 2.6 kg / 5.7 lbs Vibration:
Drilling in metal: 3.8 m/s²
Uncertainty of measurement K: 1.5 m/s²
Impact drilling concrete: 17.7 m/s²
Uncertainty of measurement K: 1.5 m/s² Noise Emission:
Sound pressure level: 71 dB(A)
Sound power level (LwA): 82 dB(A)
Uncertainty of measurement K: 3 dB(A) Scope Of Delivery:
1 x Brushless Cordless Hammer Drill
2 x Li-Power battery packs (18 V/5.2 Ah).
1 x Charger ASC 55 “Air Cooled”.
1 x Futuro Plus keyless chuck with a metal sleeve.
1 x Plastic carry case.
1 x Side Handle.
1 x Belt hook and bit case
