Description

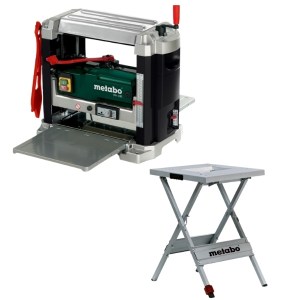

Bench Thicknesser DH 330 (0200033000):
– Ideal for mobile use due to low weight
– Stable gear for uniform workpiece feed
– Convenient height adjustment with crank handle
– Easy setting of common passage heights using stop points
– Powerful universal motor for powerful lugging drive and even planing result
– Restart protection: prevents unintentional start-up after a power supply interruption
– Precise thickness adjustment for quick and exact planing
– Large feed and exit tables support the conveyance of long materials<...br /> – Planing locking mechanism prevents unintentional adjustment of the chip removal setting Characteristics:
– Dimensions: 579 x 857 x 574 mm
– Chip removal bench thicknesser0 – 3 mm
– Material thickness table: Cast aluminium / special steel aluminium
– Thickness table L x W: 840 x 330 mm
– Passage height/width: 152 / 330 mm
– Feed rate: 7 m/min
– Diameter of blade shaft: 47 mm
– Number of blades: 2
– Revolutions of blade shaft: 9800 rpm
– Mains voltage: 220 – 240 V
– Rated input power: 1800 W
– Weight: 35 kg Noise emission:
– Uncertainty of measurement K: 4 dB(A) Machine Stand UMS (631317000):
– For ideal working height and stability
– Can be folded up compactly
– Compensation in height with adjustable stand
– Ready mounted
– Height of workbench: 83 cm
– Weight: 12 kg
– Maximum weight load: 250 kg
– Support surface 57 x 60 cm What’s in the box
1 x Bench Thicknesser DH 330 (0200033000)
1 x Machine Stand UMS (631317000)
