Description

Features
• Pure sine wave output
• 2000 cycles lifePO4 battery
• Mains supply mode, Battery mode
• 5V DC USB 2.0 ports
• 12V DC output ports
• MPPT solar charge controller
• Over charge protection as well as over discharge protection
• Intelligent exhaust fan Inverter Specifications Rated Power: 1 000VA / 1 000W INPUT Voltage range: 140 – 275V
Mains charging current: 10A
Frequency Range: 45-65Hz OUTPUT Voltage: 230V AC
Frequency: 50/60Hz
Output wave form: Pure Sine Wave BATTERY ...Battery Voltage: 25.6V DC
Battery capacity: 1X 50Ah
Battery cycle life: 2 000 Cycles @ DOD 80% SOLAR CHARGER Solar Charger Type: MPPT
Maximum PV Array Power: 840W
Number of MPPTs: 1
MPPT Range @ Operating Voltage: 35 – 100V DC
Maximum Solar Current Charger: 30A (Max)
Floating Charge Voltage: 28.4V DC DC OUTPUT Low Voltage recovery: 26.8V DC
Low Voltage Protection: 22.4V DC
5V DC USB Output: 2 Pcs 5V DC, USB 2.0, Max 2A
12V DC Output Ports: 2 Pcs Max 2A PHYSICAL Heat Dissipation / Cooling: Intelligent exhaust fan (Temperature controlled)
Dimensions: W x D x H (mm): 480 X 192 X 410
Packing size: W x D x H (mm): 527 X 277 X 475 Net Weight (kgs): 29kg
Gross Weight (kgs): 31kg What’s in the box

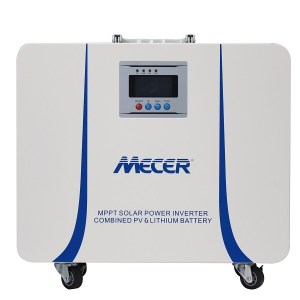

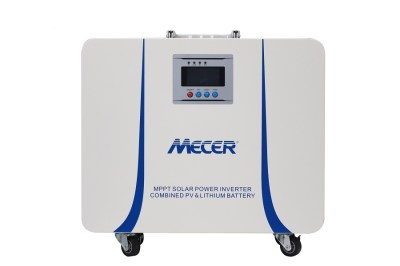

1x SOL-I-BB-M1L
