Description

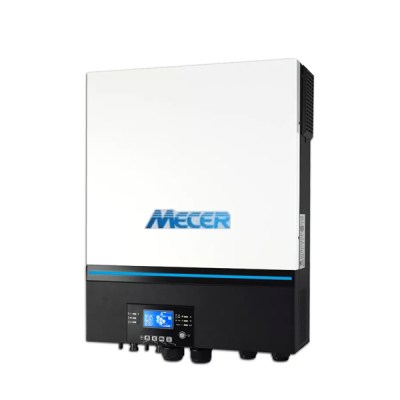

Mecer Axpert 11kVA 11kW MPPT 230Vac 48VDC Off Grid Inverter Features:
– Colour black and white
– Name: SOL-I-AX-11M
– Operating Temperature Range: -10-50deg C
– Pure sine wave inverter
– Output power factor 1
– Built-in high voltage range MPPT solar charge controller
– Selectable input voltage range for home appliances and personal computers
– Selectable charging current based on application
– Configurable AC/Solar input priority via LCD setting
– Compatible with mains voltage or generator ...power
– Auto restart while AC is recovering
– Overload and short circuit protection
– Battery equalization for optimized battery performance and lifecycle
– Cold start function
– Built-in parallel kit enabling parallel operation with up to 9 units Specifications:
Inverter Mode:
– Rated Power: 11000VA/11000W
– DC Input: 48VDC, 228A
– AC Output: 230VAC, 50/60Hz, 47.8A, 1Ohm AC Charger Mode:
– AC Input: 230VAC,50/60Hz,60A, 1Ohm
– DC Output: 54VDC
– Max. 150A, Default 30A
– AC Output: 230VAC, 50/60Hz, 47.8A, 1Ohm Solar Charger Mode:
– Rated Power: 5500W x2
– Nominal Operating Voltage: 340VDC
– Max Solar Voltage(VOC): 500VDC
– MPPT Voltage Range: 90-450VCD
– Enclosure: IP21
– Protective Class I What’s in the box
1 x Inverter
1 x Cables
1 x DVD
1 x User Manual
