Description

Features
Supports 1x 12 V 100Ah battery (Included)
Transportable
1200VA/720W
DC-AC Inverter
Socket for Solar Power
Simulated sine wave inverter
Wide input voltage range
10 A standard AC charging current
LCD display for comprehensive information
Overload, short circuit and reverse polarity protection Input Voltage
230 VAC Acceptable Voltage Range
90-280 VAC Frequency
50 Hz/60 Hz (Auto sensing)
OUTPUT AC Voltage Regulation (Batt. Mode)
± 10% Efficiency (Peak)
82% Transfer Time<...br /> 20 ms typical Waveform (Batt. Mode)
Simulated sine wave BATTERY Battery Type and Numbers
12 V 100Ah x 1 The rechargeable batteries are lead-lead dioxide systems. The dilute sulfuric acid electrolyte is absorbed by separators and plates and thus immobilized. Should the battery be accidentally overcharged producing hydrogen and oxygen, special oneway valves allow the gases to escape thus avoiding excessive pressure build-up. Otherwise, the battery is completely sealed and is, therefore, maintenance-free, leak proof and usable in any position. PROTECTION
Full Protection
Overload, short circuit and polarity reserve protection PHYSICAL Dimension
370mm (W)x310(D) x400(H) OPERATING ENVIRONMENT Humidity
0 to 90% Relative Humidity (Non-condensing) Operating Temperature
0? to 40? Storage Temperature
-15? to 50? What’s in the box

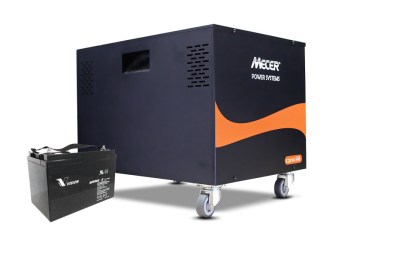

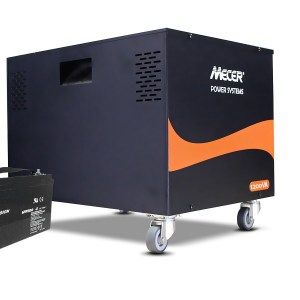

1 x Mecer 12V Battery Centre / Inverter
1 x 100AH 12V Deep Cycle Battery
1 x Power Cable attached to the BBONE
1 X User Manual
