Description

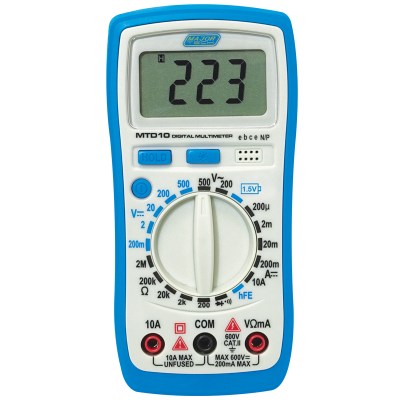

The MTD10 DIY Digital Multi meter is a completely portable 3 ½ digital multi meter designed for use by a student and hobbyist. Equipped with 8 functions and 21 ranges, each test position is quickly and easily selected with a simple turn of the single selector switch. Features :
8 Functions & 21 Versatile ranges
3½ Inch Digital LCD screen
AC/DC Voltage to 500V
Measures DC Current to 10A
Resistance to 2M?
Transistor Test for NPN and PNP transistors
Diode ...Check, Continuity, Data Hold
1.5V Battery Test
Backlight
Overload Protection Additional information:
Data Hold: Yes
Power source: 9V Alkaline / Carbon-zine
Over-range indication: Yes
Diode Test: Yes
Digital Display: 3 ½ Digital LCD 1999 max
DC Voltage: 200mV – 2V – 20V – 200V – 500V
DC Current: 200µA-2mA-20mA-200mA-10A
Built-in buzzer: Yes
Continuity: Yes
Battery test: 1.5V
Battery Life: 100 Hrs carbon-zine
Back Light: Yes
AC Voltage: 200V-500V
Resistance: 200?-2k?-20k?-200k?-2M?
Fuse: F 200mA/250V
Weight: 195g
Dimensions: 144 (h) x 71(w) x 32(d) mm What’s in the box
1x MTD10 Multimeter
1x Set of Test Leads
1x Instruction Manual
