Description

Black nylon, liquid-tight Cordgrip.
Used where cable is entering or leaving an enclosure.
Accepts a wide range of cable diameters due to large opening and highly flexible strain relief elements, together with a TPE sealing ring.
The strain relief elements tighten in a circular sequence on the sealing ring to give outstanding strain relief without twisting or damaging the cable.
Use the Cordgrip with the smallest maximum diameter that will fit your application Specifications:
– Thread ...Size: PG13.5
– Mounting Hole Diameter: 21mm
– Wire Diameter Min: 6mm
– Wire Diameter Max: 12mm
– Outer Length: 27mm
– Inner Thread Length: 9mm What’s in the box

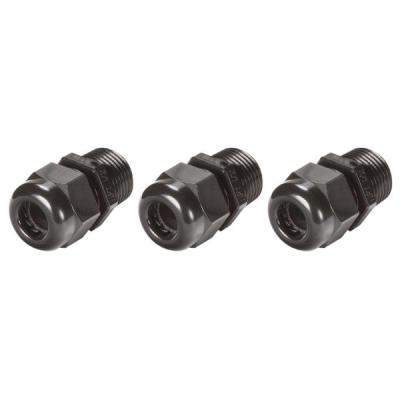

3 x Liquid-Tight Strain Relief Cordgrip PG13.5
