Description

Empower Yourself to make it through all Loadshedding and Power Interruptions. These are Quality Power Backup Solutions that will keep your Essential Services Running for hours. Features:
– Full Protection – Overload, overcharge, over temperature, low batter alarm and low battery shutdown
– Intelligent charging – 3 stages of intelligent charging control
– Fast charging – Choose between 10A or 20A maximum charging current
– Compact size – The inverter is light and compact, measuring at only 316 x 227 x 92mm
– LCD Indicators and buzzer ...alarms
– Low noise fans
– Fast charging
– 12V DC Battery Required (Excluded)
– RS232 Monitoring interface Specifications:
– Capacity: 1000VA/900W
Input:
– Narrow range mode: 170~280VAC
– Wide range mode: 90~280VAC
– Frequency range: 50/60Hz (Auto sensing)
Output:
– AC Voltage regulation (Bat Mode): 230VAC ±10%
– Frequency range (Bat Mode): 50/60Hz ± 1Hz
– Transfer time: Typical 20ms
– Waveform: (Bat Mode): Simulated Sine Wave
Battery:
– Battery Voltage: 24V
– Charging Current: 10A/20A
Protection:
– Overload, Overcharge & Over Temperature, Low Battery Alarm & Low Battery Shutdown
Humidity: 0-90%RH @ 0-50°C (Non-Condensing) What’s in the box

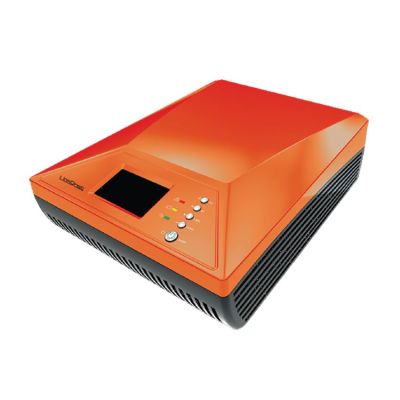

1 x LinkQnet 1000VA / 230 VAC Inverter
