Description

Product Collection 11th Generation Intel® Core™ i5 Processors
Code Name Products formerly Rocket Lake
Vertical Segment Desktop
Processor Number i5-11400
Status Launched
Launch Date Q1’21
Lithography 14 nm
Use Conditions PC/Client/Tablet
Recommended Customer Price
CPU Specifications of Cores 6 of Threads 12 Processor Base Frequency 2.60 GHz
Max Turbo Frequency 4.40 GHz
Cache 12 MB Intel® Smart Cache
Bus Speed 8 GT/s
Intel® Turbo Boost Technology 2.0 Frequency 4.40 GHz
TDP 65 ...W
Supplemental Information
Embedded Options Available No
Datasheet View now
Memory Specifications
Max Memory Size (dependent on memory type) 128 GB
Memory Types DDR4-3200
Max # of Memory Channels 2
Max Memory Bandwidth 50 GB/s
ECC Memory Supported No
Processor Graphics
Processor Graphics Intel® UHD Graphics 730
Graphics Base Frequency 350 MHz
Graphics Max Dynamic Frequency 1.30 GHz
Graphics Video Max Memory 64 GB
Execution Units 24
4K Support Yes, at 60Hz
Max Resolution (HDMI) 4096×2160@60Hz
Max Resolution (DP) 5120 x 3200 @60Hz
Max Resolution (eDP – Integrated Flat Panel) 5120 x 3200 @60Hz
DirectX* Support 12.1
OpenGL* Support 4.5
Intel® Quick Sync Video Yes
Intel® InTru™ 3D Technology Yes
Intel® Clear Video HD Technology Yes
Intel® Clear Video Technology Yes of Displays Supported 3 Device ID 0x4C8B
OpenCL* Support 3
Expansion Options
Scalability 1S Only
PCI Express Revision 4
PCI Express Configurations Up to 1×16+1×4, 2×8+1×4, 1×8+3×4
Max # of PCI Express Lanes 20
Package Specifications
Sockets Supported FCLGA1200
Max CPU Configuration 1
Thermal Solution Specification PCG 2019C
TJUNCTION 100°C
Package Size 37.5 mm x 37.5 mm
Advanced Technologies
Intel® Deep Learning Boost (Intel® DL Boost) Yes
Intel® Optane™ Memory Supported Yes
Intel® Thermal Velocity Boost No
Intel® Turbo Boost Max Technology 3.0 No
Intel® Turbo Boost Technology 2
Intel vPro® Platform Eligibility No
Intel® Hyper-Threading Technology Yes
Intel® Virtualization Technology (VT-x) Yes
Intel® Virtualization Technology for Directed I/O (VT-d) Yes
Intel® VT-x with Extended Page Tables (EPT) Yes
Intel® 64 Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2, Intel® AVX-512
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Identity Protection Technology Yes
Intel® Stable Image Platform Program (SIPP) No
Intel® Gaussian and Neural Accelerator 2.0 Yes
Security & Reliability
Intel® AES New Instructions Yes
Secure Key Yes
Intel® Software Guard Extensions (Intel® SGX) No
Intel® OS Guard Yes
Intel® Trusted Execution Technology No
Execute Disable Bit Yes
Intel® Boot Guard Yes What’s in the box

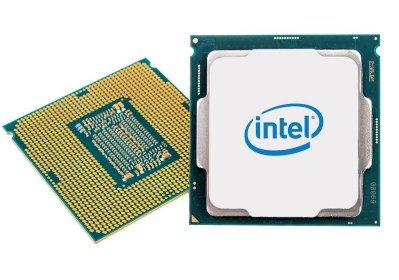

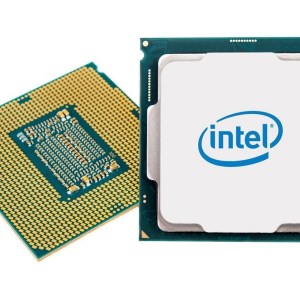

1 x INTEL ROCKET LAKE I5-11400 2.6G LGA1200 ,1 x CPU Cooler
