Description

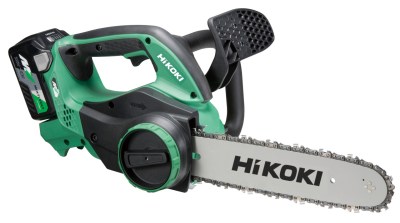

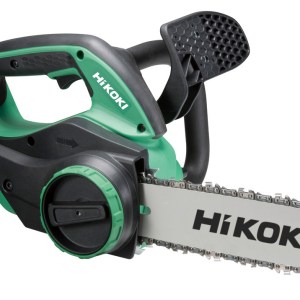

HIKOKI – Multi-Volt Chain Saw – 36V (Including Battery and Charger) Features:
Approx. 190 cuts* per charge.
Oil sight glass (transparent oil tank window) with backlight to easily check the amount of remaining oil.
LED illuminates cutting area in dark conditions.
Tool-less chain adjuster for easy chain adjustment.
Mechanical kick-back brake.
Ergonomic shaped front handle and soft-grip rear handle for comfortable cutting in any working position. Specifications:
Battery Voltage: 36V
Guide Bar Length: 300mm (12″)
...Chain Speed: 8.3m/s
Type of Guide Bar P012-50CR
Chain Pitch: 9.5mm (3/8″)
Overall Length: 599mm (23-37/64″)
Lubrication method – Automatic
Oil tank capacity – 80ml
Blade pitch – 3/8 inch
Chain style – 91PX-45E
Cutting ability – 300mm
Product Dimensions – 599 × 214 × 256mm (With Battery Installed)
Product Weight – 4.3Kg (With Battery Installed) Kit Includes:
1 x HiKOKI CS3630DA Cordless Chain Saw.
1 x Hikoki BSL 36A18 Multi-Volt Li-Ion Batteries (36V 2.5AH / 18V 5.0AH).
1 x Hikoki UC18YSL3 14.4 / 18v Li-Ion Slide Rapid Charger.
Chain Oil.
Chaincase.
Battery Cover.

Hexagonal bar spanner (4 mm).

CHARGER SPECIFICATIONS:
HiKOKI UC18YSL3 14.4V – 18V Li-ion Rapid Battery Charger with Cooling & USB Port
HiKOKI’s Rapid Charger, UC18YSL3, charges 14.4V and 18V slide batteries in record time – allowing the user to charge a BSL1860 6.0Ah battery in 38 minutes. With a built in USB port, you can connect a mobile device and charge it at the same time. Features:
Cooling feature helps cool battery during charging or before charging commences to prevent battery overheating ensuring extended battery life
Preventative mechanism against charging a hot battery to extend battery life
3 way overcharge protection system to ensure battery is not overcharged
Two colour indicator light to indicate what stage of charging the battery is in
USB port for charging mobile devices Specifications:
Voltage: 14.4V – 18V
USB ports: 1
Battery type: Li-ion Slide
Charge times:
1.5Ah: 15 mins approx
2.0Ah: 20 mins approx
2.5Ah: 25 mins approx
3.0Ah: 20 mins approx
4.0Ah: 26 mins approx
5.0Ah: 32 mins approx
6.0Ah: 38 mins approx. BATTERY SPECIFICATIONS:
HiKOKI BSL36A18 18V – 36V 5.0Ah – 2.5Ah MultiVolt Battery Pack
HiKOKI MultiVolt gives its user AC Power with DC freedom, now made even better by a level of convenience and superior technology you won’t get from other tools. HiKOKI MultiVolt gives double voltage supply in one battery meaning you simply snap it into place and power on, regardless of whether you’re using 36V or 18V tools. Features:
1080W Power and compact & lightweight (almost the same size and weight as an 18V BSL1850 or 60 battery) with 18,650 cells
Automatic voltage change between 36V and 18V
Remaining battery indicators displays the charging state in 4 stages. Specifications:
Voltage: 18V – 36V
Capacity:
18V: 5.0Ah
36V: 2.5Ah
Charge time: Approx 32 mins
Dimensions (L x W x H): 116mm x 69mm x 76mm. What’s in the box
1 x HiKOKI CS3630DA Cordless Chain Saw.
1 x Hikoki BSL 36A18 Multi-Volt Li-Ion Battery (36V 2.5AH / 18V 5.0AH).
1 x Hikoki UC18YSL3 14.4 / 18v Li-Ion Slide Rapid Charger.
Chain Oil.
Chaincase.
Battery Cover.
Hexagonal bar spanner (4 mm).

Additional information

Weight	7 kg

Model	HTC-CS3630DA
