Description

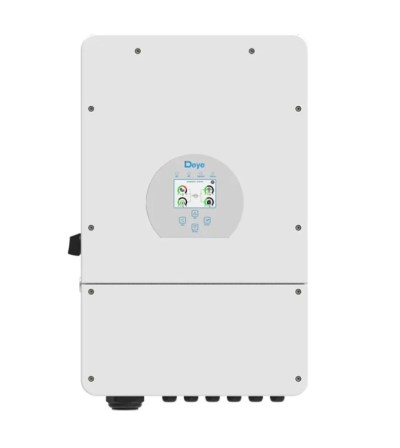

The Deye Hybrid Parity Inverter is a highly efficient power management tool that allows the user to hit those ‘parity’ targets by managing power coming from multiple sources such as solar, mains grid, and generator and then effectively storing and releasing electric power as the utilities require. The Inverter has many uses and is recommended for the following applications:

• Power shedding (home/office/factory)
• UPS (fuel saving systems)
• Remote locations with solar and wind ...generators
• Building sites
• Military locations
• Telecommunication sites

Features:
– 220V single phase, pure sine wave inverter
– Self-consumption & feed-in to the grid
– Auto re-start while AC is recovering
– Programmable supply priority for battery or grid
– Programmable multiple operation modes; on-grid / off-grid & UPS
– Configurable battery charging – current / voltage based on applications by LCD setting
– Configurable AC / solar / generator charger priority by LCD setting
– Compatible with mains voltage or generator power
– Overload / over-temperature / short-circuit protection
– Smart battery charger designer-optimized battery protection
– Limit-function installed to prevent excess power overflow to the grid
– Supporting Wi-Fi monitoring and built-in 2 strings of MPP trackers
– Smart settable 3-stage MPPT charging for optimized battery performance
– Time of use function
– Smart load function Deye Sun 5kW Hybrid PV Inverter 48V

• Rated Power: 5000w
• Max Solar Input: 6500w
• No of MPPT: 2
• MPPT Voltage: 125 -425w
• Startup Voltage: 150V
• Effeciency: 97.6%

What’s in the box
1 x Inverter
1 x User Manual
1 x Cable
