Please note: This inverter requires 4 x 12V batteries or a single 48V Lithium battery (Sold separatelyThis inverter requires 4 x 12V batteries or a single 48V Lithium battery (Sold separately) This multi-function inverter/charger, combing functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications. Features:
– ...Pure Sine Wave Inverter
– Built-In MPPT Solar charge controller
– Configurable input voltage range for home appliances and personal computers via LCD setting
– Configurable battery charging current based on applications via LCD setting
– Configurable AC/solar Charger priority via LCD setting
– Compatible to mains voltage or generator power
– Auto restart while AC is recovering
– Overload/ Over temperature/ short circuit protection
– Smart battery charger design for optimized battery performance
– Cold start function Input:
– Voltage: 230V AC
– Selectable Voltage Range: 170 -280V AC (For Personal Computers): 90 -280V AC| (For Home Appliances)
– Frequency Range: 50Hz / 60Hz (Auto-sensing) Output:
– AC Voltage Regulation (Battery Mode): 230V AC 5%
– Surge Power: 5000VA
– Efficiency (Peak) 90% – 98%
– Transfer Time 10 ms (For Personal Computers); 20 ms (For Home Appliances)
– Waveform Pure sine wave Battery
– Battery Voltage 12V DC
– Floating Charge Voltage: 64V DC
– Overcharge Protection: 66V DC
– Overcharge Protection: 66V DC PV Connection:
– Typical amperage: 80A
– Cable Size: 6 AWG
– Torque: 1.4~1.6Nm
– Max.PV Array open circuit voltage: 145VDC
– PV Array MPPT voltage range: 60 ~ 115VDC
– Min. battery voltage for PV charge: 34VDC What’s in the box

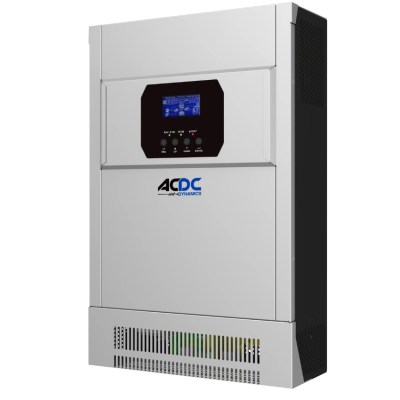

1 x ACDC – Axpert Off – Grid Inverter 5000VA/48VDC – 80A MPPT
