Description

The Air Plasma Cutter can be used for a wide range of cutting applications: stainless steel, alloy steel, copper, aluminium and all other colour metal materials. You will need a suitable compressor to operate the CUT 40 Air Plasma Cutter. A clean dry air supply is required: 350KPA/3.5 BAR – 550KPA/5.5BAR, to the machine. Air pressure must be regulated lower or higher depending on cutting requirements and adjustment of the required amperage. Plasma Includes:
– Face Shield.
– Earth Clamp & ...Cable / Cutting Torch.
– Water Trap.
– Hose & securing clamps.
– User Manual. The cutter can be used for many applications in various industries.
It is very light and portable weighing only 7.5 kg.
Can cut circles, ovals and many other shapes/ free hand or the use of jigs.
Cutting capacity increased 1.8 times higher in cutting speed compared with oxy fuel cutters. Specifications:
– Rated input power 4.9kVa.
– No-load voltage 240V.
– Rate output cur 10-40 Amps.
– Rated output voltage 96V.
– Duty cycle 60%.
– Cut thickness 10mm. What’s in the box

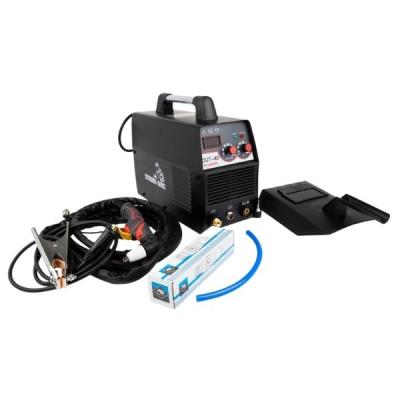

1 x STRIKE-ARC Plasma Cutter 10mm
1 x Face Shield.
1 x Earth Clamp & Cable / Cutting Torch.
1 x Water Trap.
1 x Hose & securing clamps.
1 x User Manual.
