Description

Description:
– Restart protection: prevents unintentional start-up after power supply interruption
– Precise, powerful table saw in professional configuration – quick to adapt for every application
– Ideal for sawing squared timber, boards, panels and wood-like materials in the workshop and at construction sites
– Quiet induction motor with motor brake and overload protection – maintenance-free and robust.
– Mitre fence with linear stop, can also be used a sliding table
– Sturdy rip fence with quick fastening
– Freely height-adjustable saw ...blade
– Comfortable setting of the saw blade inclination from the front
– Sturdy, powder-coated sheet steel design and Galvanised table-top
– Foldable table length extension
– Frame and motor pre-mounted Characteristics:
– Dimensions: 1700 x 700 x 1000 mm
– Max. support surface: 800 x 600 mm
– Working height: 850 mm
– Cutting height: 0 – 85 mm
– Maximum cutting height 90/45°: 85 / 53 mm
– Maximum cutting width at rip fence: 340 mm
– Maximum material width at mitre fence: 250 mm
– No-load speed: 2990 rpm
– Cutting speed: 50 m/s
– Saw blade: 315 x 30 mm
– Saw blade swivel range: 0 – 45 °
– Mains voltage: 220 – 240 V
– Rated input power: 3100 W
– Weight: 75 kg Noise emission:
– Sound pressure level: 97 dB(A)
– Sound power level (LwA): 106 dB(A)
– Uncertainty of measurement K: 4 dB(A) What’s in the box

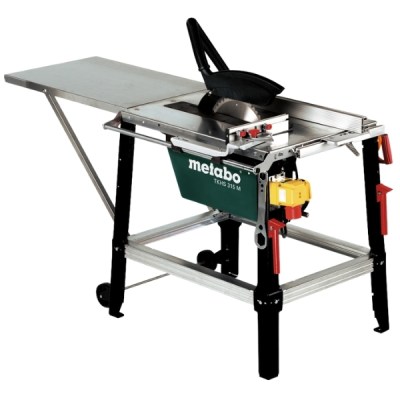

1 x Metabo – Table Saw TKHS 315 M – 3,1 WNB – 3100W (0103153100)
1 x Carbide saw blade with alternately bevel-ground tips (24 teeth)
1 x Mitre Fence
1 x Table extension (600 x 800 mm)
1 x Chip and Dust Extraction Unit
1 x Push stick
1 x Wheel set incl. handles
1 x Rip Fence
